2500W 5000W Pure Sine Wave Power
Inverter 12V to 110V 120V Converter
LCD
Inverter with pure sine wave and many additional functions. The inverter converts 12V direct current into pure sine wave 110 V alternating current at a continuous power of 2500 W and a peak power of up to 5000 W (2 seconds surge). This means that consumers with high start-up currents or short-term high peak consumption can also be used without restrictions. An ideal voltage converter for camping with a supply battery.
Continuous: 2500W
Input voltage: 12V
Wave type: Pure Sine Wave
Specifications
- Wave Type : Pure Sine Wave
- Voltage : 12 V to 110v 120 V

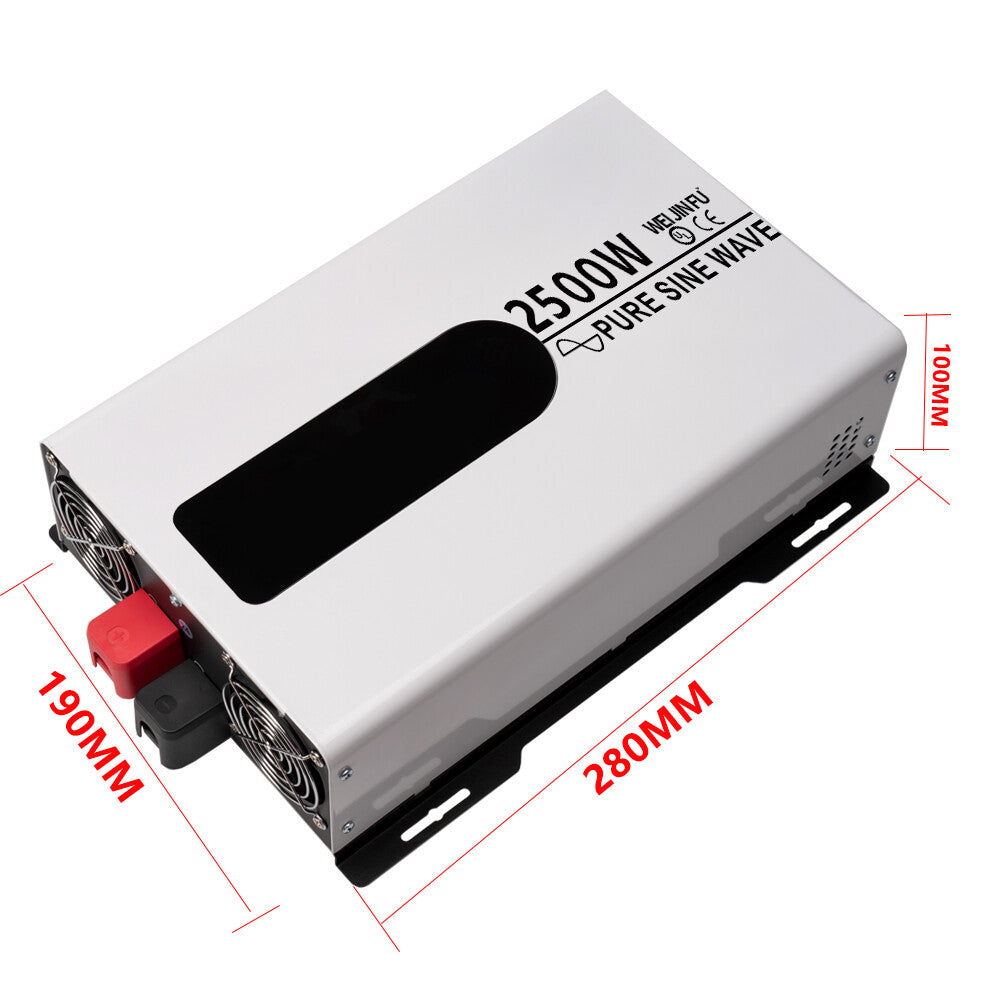

- Size (L x B x H) : 280*190*100MM
- Max. power up to 2 s : 5000 W
- Max. power up to 10 s : 2500 W
- Continuous : 2500 W
- Frequency : 60 Hz
- Efficiency : 86-90 %
- Suitable for balcony power plants for grid feed-in : NO
- Current consumption in no load : about 1 A
- DC voltage range : 9,5 V-16,5 V
- Weight : 4.25kg (including package)
In addition to all modern basic functions, also offers the latest additional functions such as:
USB socket for charging small consumers
Soft start
Surge protector
Undervoltage protection (protects the batteries)
Overload protection
Overheating protection
Reverse polarity protection (fuse trips)
Shutdown in case of overload
Various acoustic warning signals in case of issue
inverters have the CE and FCC.
USB socket for charging small consumers
Soft start
Surge protector
Undervoltage protection (protects the batteries)
Overload protection
Overheating protection
Reverse polarity protection (fuse trips)
Shutdown in case of overload
Various acoustic warning signals in case of issue
inverters have the CE and FCC.

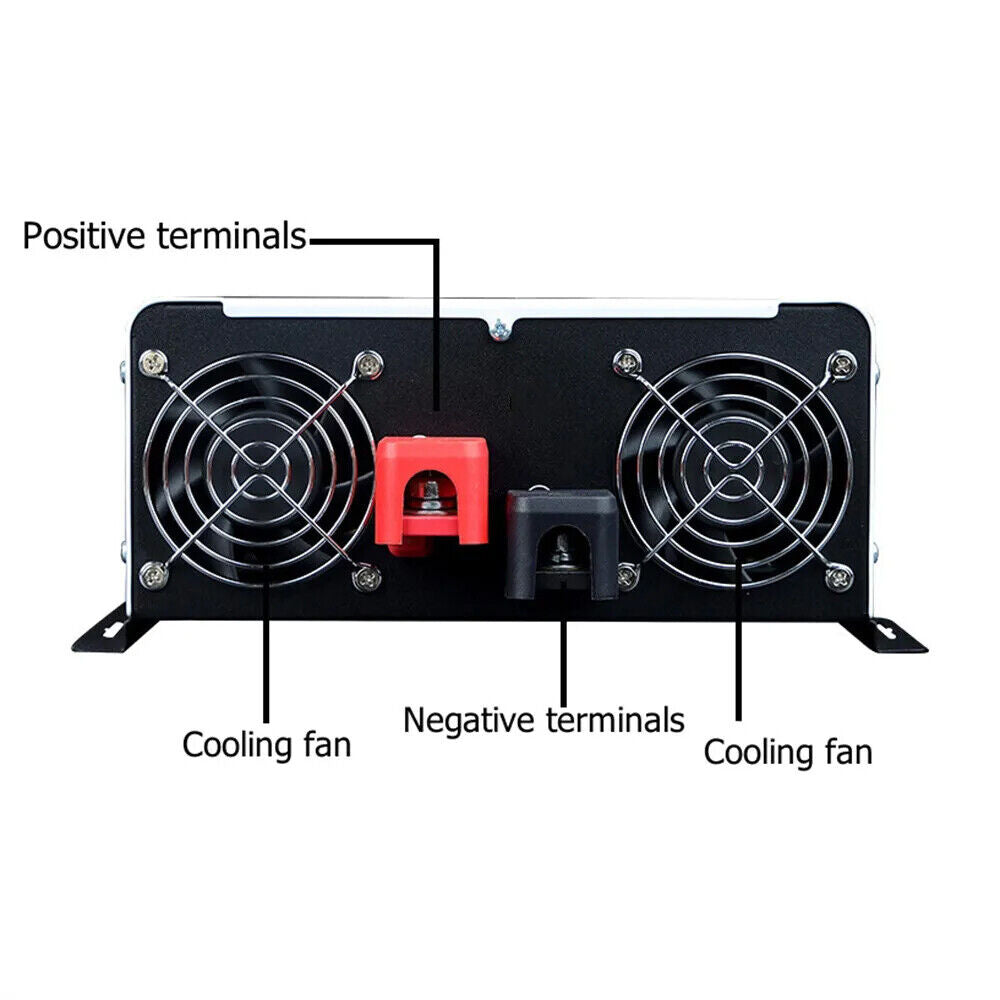

Do not reverse the positive and negative connection, otherwise it may damage the inverter.
The procedure for the electrical cable connection of inverters is as follows:
Set the inverter switch to the OFF state.
Connect the terminals of the storage battery to the positive and negative poles of the storage battery: The positive terminal of the storage battery should be connected to the positive terminal, while the negative terminal of the storage battery should be connected to the negative terminal.
It should be confirmed that the connection between the terminals and poles of the storage battery is good, otherwise the heating of the cable may be caused.
Turn on the switch and start the inverter.
Connect the load to the AC output socket on the output side of the inverter.
